The Right Level of Control for Your Grain Handling
Every grain store is different. Whether you need a simple panel with indicator lights and push buttons, or a fully integrated SCADA system managing dozens of conveyors and diverters, Tryac builds a solution tailored to your operation.
Three Levels of Control — One Standard of Quality
We offer three tiers of crop conveying control, each designed and manufactured to the same exacting standards in our Grantham workshop. Choose the level that fits your needs and budget — we can always upgrade later as your operation grows.
Our Conveying Control Systems

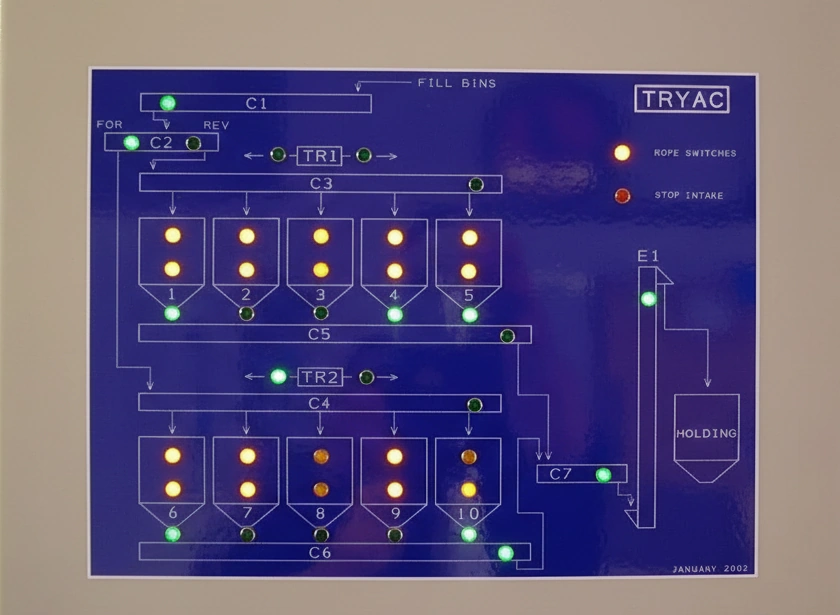

Simplistic Mimic Displays
A traditional mimic panel with a printed or engraved layout of your grain store showing conveyor routes, bins and equipment. Push-button controls and LED indicators give the operator a clear, at-a-glance view of what’s running and where grain is being routed.
Key Features
- Printed or engraved mimic layout of your grain store
- Push-button start/stop for each conveyor and elevator
- LED indicator lights showing running status
- Motor overload and trip indication
- Emergency stop circuits with safety interlocking
- Diverter valve position indicators
- Simple, robust and easy to operate

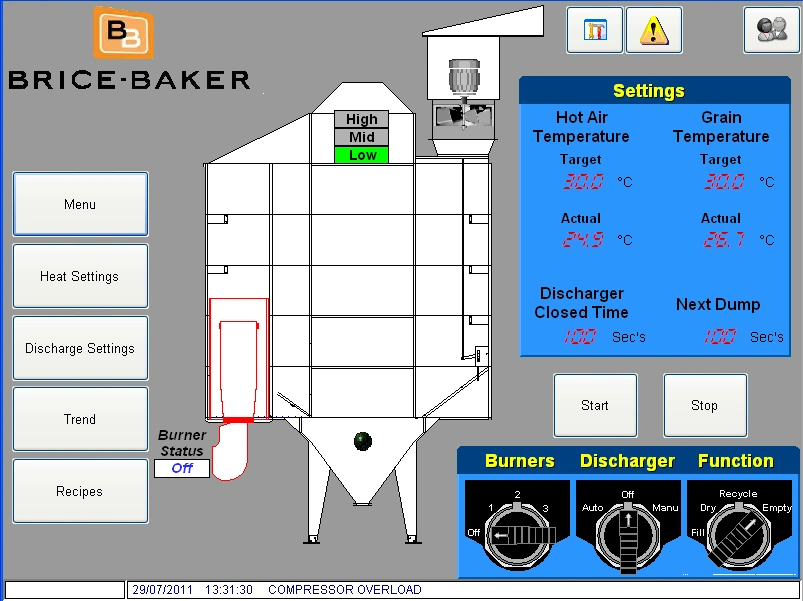

HMI Display Systems
A colour touchscreen HMI (Human-Machine Interface) replaces the traditional mimic with an interactive, graphical display of your entire grain handling system. Operators can start routes, monitor equipment status and view alarms all from a single screen — with the option for automated route selection.
Key Features
- Colour touchscreen HMI with graphical plant layout
- One-touch route selection and sequencing
- Real-time equipment status and motor feedback
- Alarm logging and fault history
- Automated conveyor interlocking and sequencing
- Configurable screen layouts and user levels
- Integration with temperature and moisture sensors

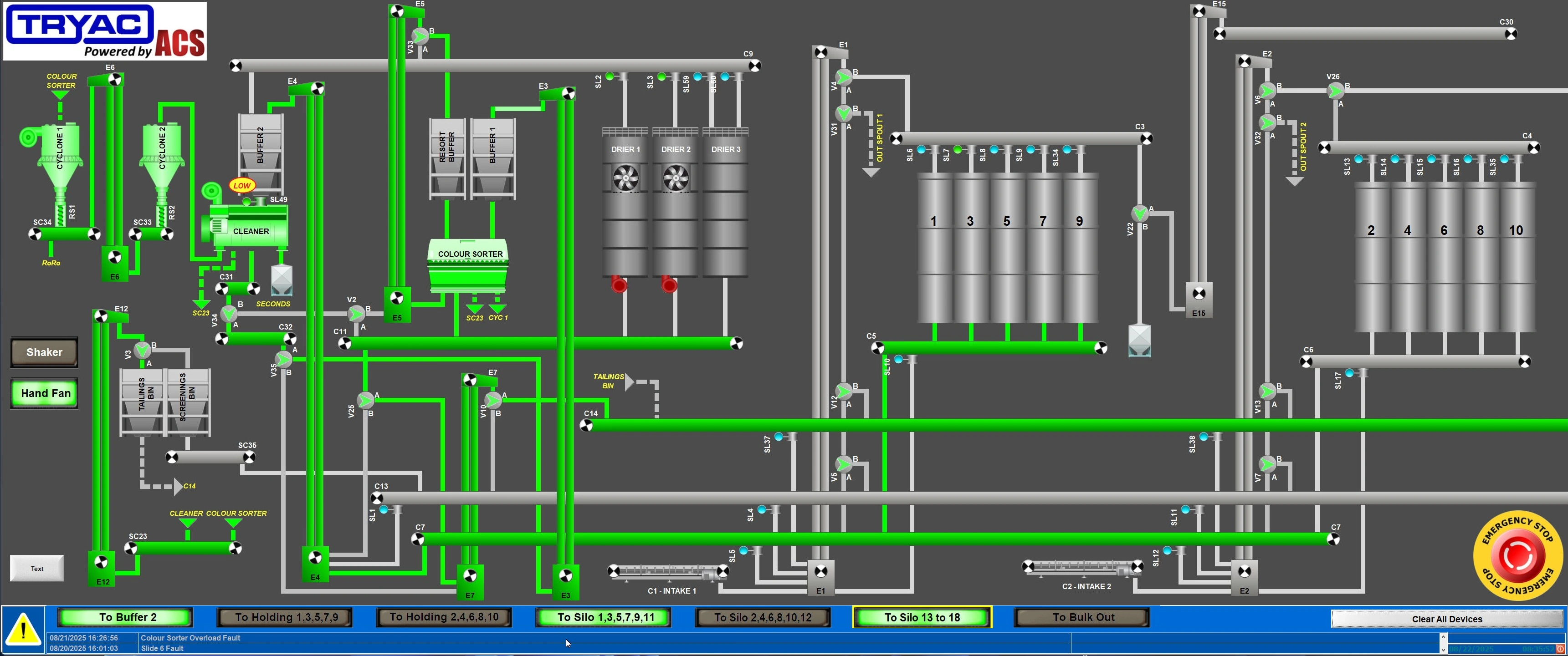

Full SCADA Control Systems
For large-scale and commercial grain handling operations, our full SCADA (Supervisory Control and Data Acquisition) systems provide centralised monitoring and control of your entire facility. PLC-driven automation with PC or tablet-based supervision, remote access capability and comprehensive data logging.
Key Features
- PLC-based automation with SCADA software interface
- PC, tablet or multi-screen supervision stations
- Remote monitoring and control via network/VPN
- Full data logging, reporting and trend analysis
- Automatic route selection with conflict management
- Integration with weighing, moisture and temperature systems
- Multi-user access with role-based permissions
- Expandable architecture for future growth
At a Glance Comparison
| Feature | Mimic Display | HMI System | Full SCADA |
|---|---|---|---|
| Visual plant layout | ✓ Printed/engraved | ✓ Touchscreen | ✓ Multi-screen |
| Push-button control | ✓ | ✓ + touchscreen | ✓ + touchscreen |
| Running status indicators | ✓ LED | ✓ On-screen | ✓ On-screen |
| Automated route selection | — | ✓ | ✓ |
| Alarm logging & history | — | ✓ | ✓ |
| Data logging & reports | — | — | ✓ |
| Remote access | — | — | ✓ |
| PLC automation | — | Optional | ✓ |
| Multi-user access levels | — | Basic | ✓ Role-based |
| Sensor integration | Basic | ✓ | ✓ Full |
| Safety interlocking | ✓ | ✓ | ✓ |
| Expandable / upgradeable | Limited | ✓ | ✓ Fully |
How It Works
Survey & Consultation
We visit your site to understand your grain handling layout, equipment, conveying routes and operational needs. We then recommend the right level of control for your operation.
Design & Manufacture
Your panel is designed around your exact plant layout and built in our Grantham workshop. Every panel is fully wired, programmed and tested before leaving our premises.
Installation & Commissioning
Our engineers install the panel on-site, connect all conveyors, elevators, diverters and sensors, and commission the system with your team.
Training & Support
We provide full operator training and ongoing telephone support. Spare parts and repair services are always available when you need them.
Crop Conveying Control for UK Grain Stores
Efficient crop conveying is the backbone of any modern grain store. Whether you’re moving grain from intake pit to drying floor, between storage bins, or out to a lorry for haulage, a well-designed control panel makes the process safer, faster and more reliable.
Tryac has been designing and building crop conveying control panels for over 30 years. Our systems range from simple mimic displays for straightforward setups through to full SCADA solutions for large-scale commercial operations.
What Is a Mimic Display?
A mimic panel features a printed or engraved diagram of your grain store layout directly on the panel door. LED lights and push buttons correspond to each piece of equipment, giving the operator a clear, physical overview of what’s running and where grain is being routed. Mimic panels are simple, robust and require minimal training.
What Is an HMI System?
An HMI (Human-Machine Interface) replaces the traditional mimic with a colour touchscreen. The grain store layout is displayed graphically, with real-time status updates, one-touch route selection and alarm logging. HMI systems are ideal for medium to large stores where operators benefit from automated sequencing and visual feedback.
What Is SCADA?
SCADA (Supervisory Control and Data Acquisition) provides full centralised monitoring and control of your grain handling facility. A PLC handles the automation while a PC or tablet-based interface gives operators and managers complete visibility of the system, including remote access, data logging, trend analysis and reporting. SCADA is the choice for large commercial stores, co-operatives and merchant sites.
Upgrade Path
One of the advantages of working with Tryac is that our systems are designed to grow with you. Start with a mimic display and upgrade to an HMI or SCADA system as your operation expands — we design the underlying wiring and interlocking to make future upgrades straightforward.
Not sure which system is right for your grain store? Contact our team for a free, no-obligation consultation.
Ready to Improve Your Grain Handling?
Whether you need a simple mimic panel or a full SCADA system, we’re here to help. Call us on 01476 576434 or get in touch online.
