Reliable Fan Control for Every Application
Whether you’re running a single low-volume ventilation fan or managing a bank of high-powered centrifugal dryer fans, Tryac builds a control panel matched to your exact requirements. Robust, safe and straightforward to operate.
Our Fan Control Panels
Low Volume Fan Panels
- Single and multi-fan control
- Direct-on-line (DOL) motor starters
- Overload and phase-failure protection
- Temperature controller input for automatic operation
- Run indicators and trip alarms
- Compact weatherproof enclosures available
- Suitable for pedestal and duct fans
- Compatible with Tryac temperature sensors
Designed for smaller ventilation and cooling fans typically found on flat-floor grain stores and on-farm drying setups. These panels provide simple, reliable control with motor protection as standard. Ideal for pedestal fan cooling systems, small duct fans and low-power ventilation applications where straightforward start/stop control and safety protection are all that’s needed. Each panel is built to order and can be configured for single or multiple fan operation, with optional automatic control via temperature sensor input.
- LV2 4T 2 400V FANS UPTO 4 KW
- LV3 4T 3 400V FANS UPTO 4 KW
- LV4 4T 4 400V FANS UPTO 4 KW
- LV6 4T 6 400V FANS UPTO 4 KW
- LV8 4T 8 400V FANS UPTO 4 KW
- LV10 4T 10 400V FANS UPTO 4 KW
- LV12 4T 12 400V FANS UPTO 4 KW
- LV14 4T 14 400V FANS UPTO 4 KW
Panels can be fitted with differential temperature equipment for cooling, please enquire if you require additional equipment.

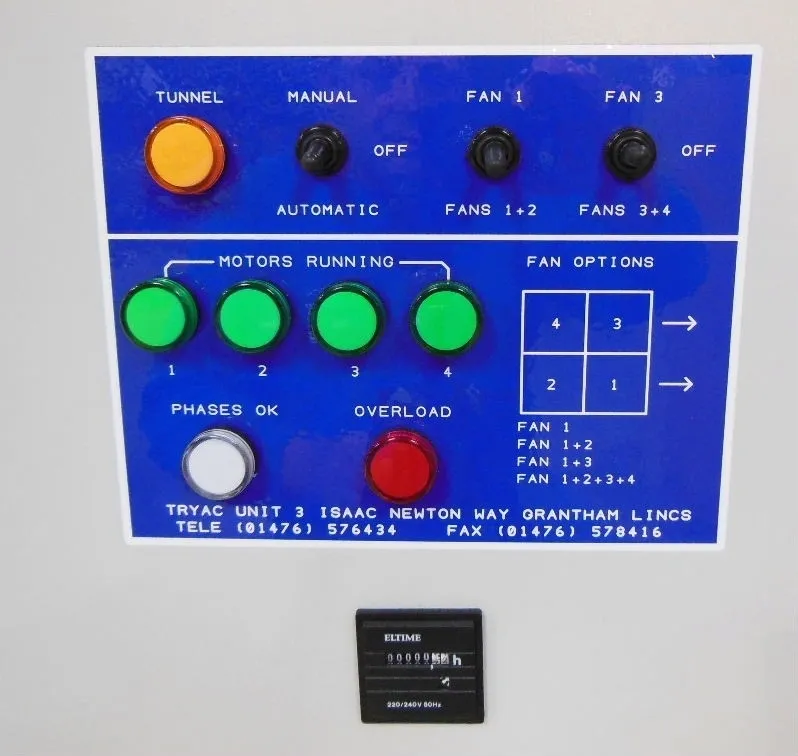

Fan Panels for Centrifugal & Axial Fans
- Star-delta and soft-start motor control
- Variable speed drive (VSD) options
- High-current switchgear for large motors
- Multi-fan sequencing and interlocking
- Overload, phase-failure and earth-fault protection
- Automatic control via temperature and moisture inputs
- Heater management and burner interlocking
- Integration with drying and cooling control systems
Built for the higher demands of centrifugal blower fans and large axial fans used in continuous flow dryers, high-capacity on-floor drying systems and commercial ventilation. These panels handle the higher starting currents and power requirements of larger motors, with star-delta or soft-start control to reduce mechanical stress and supply disturbance. Variable speed drive options allow precise airflow adjustment for optimum drying efficiency. Each panel is designed around your specific fan and motor combination, with full integration into your wider drying or cooling control system.
- SD75 1,2,3 AND 4 FANS 400V 10HP 7.5KW
- SD11 1,2,3 AND 4 FANS 400V 15HP 11KW
- SD15 1,2,3 AND 4 FANS 400V 20HP 15KW
- SD185 1,2,3 AND 4 FANS 400V 25HP 18.5KW
- SD25 1,2,3 AND 4 FANS 400V 34HP 25KW
- SD30 1,2,3 AND 4 FANS 400V 40HP 30KW
- SD37 1,2,3 AND 4 FANS 400V 50HP 37KW
- SD45 1,2,3 AND 4 FANS 400V 60HP 45KW
If you require larger size control equipment please enquire. All panels can be fitted with a humidity controller and interlocked heater supplies.
Every Panel Built to Your Specification
No two farms are the same, and neither are our panels. We design each fan control panel around your specific motors, fans and operational requirements — then build and test it in our workshop before installation.
How It Works
Consultation & Survey
We assess your fans, motors, power supply and operational requirements to determine the right panel specification.
Design & Manufacture
Your panel is designed and built in our Grantham workshop, fully wired, labelled and tested before leaving our premises.
Installation & Commissioning
Our engineers install the panel on-site, connect your fans and sensors, and commission the system ready for operation.
Ongoing Support
We provide training, seasonal servicing and telephone support. Repair services and spare parts are always available.
Agricultural Fan Control Panels
Fan control panels are at the heart of any grain drying or cooling system. The panel manages the starting, stopping and protection of your fan motors, and in many cases provides automatic control based on temperature or moisture readings from sensors within the grain store.
Low Volume vs High Power
Low-volume fans — typically pedestal fans, small duct fans and ventilation units — can usually be started direct-on-line with a simple contactor and overload relay. For larger centrifugal and axial fans, the high starting current demands star-delta switching, soft starters or variable speed drives to protect both the motor and the electrical supply.
Tryac builds both types, and everything in between. Whether you need a compact single-fan panel for a ventilation unit or a multi-motor panel with VSD control for a bank of dryer fans, we design and build to your exact requirements.
Safety & Protection
All Tryac fan control panels include motor overload protection and emergency stop circuits as standard. Earth fault protection can also be fitted if site requirements request this protection, phase-failure detection can also be incorporated on request, interlocking sequences and, where required, burner management safety systems for heated air drying.
Need help choosing the right fan control panel for your setup? Contact our team for a free, no-obligation consultation.
